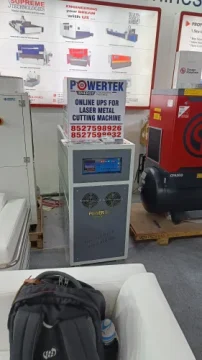

40 kVA Online Ups
Capacity:Â 40kVA
Type:Â Online UPS
Brand:Â Powertek Energy
Availability: In Stock
Details
| Capacity | 40kVA |
| Type | Online UPS |
| Brand | Powertek Energy |
| Configuration | 3 Phase IN – 3 Phase OUT |
| Battery Type | SMF |
| Model Name/Number | PTK/40KVA |
| Phase | Three Phase |
| Input Voltage | 380v |
| Protection | ShortCircuit |
| Output Voltage | 400v |
| Efficiency | 92% |
| Form Factor | Tower Model |
| Warranty | 2 Years |
| Power Cord Length | 2 mtr |
| Audible Noise | less than 50db |
| Display Type | Lcd display |
| Weight | 250kg |
| Back Up Time | 30min |
| Storage Temperature | less than 55 -c |
| Battery Rating | 26ah |
| Charging Current | 2.6ampere |
| No Load | Yes |
| Number Of Batteries Supported | 30 |
| Recharge Time | 120min |
| Regulator On Mains | Yes |
| Transient Recovery | 2 |
| Waveform | Pure Sinosidal |
| Crest Factor | Less Than 1% |
| Overload | 125% for 10 sec |
| Short Circuit Protection | Yes |
| Certification | ISO-9001 |
| Frequency Range | 50Hz |
| Usage/Application | Commercial |
| Harmonic Distortion | Less Than 1% |
| Monitoring Software | Yes |
| Over-Voltage Cutoff | Yes |
| Technology | IGBT PWM |
| Solar Power Compatible | No |
| Country of Origin | Made in India |
Powertek energy systems is the manufacturers of high quality online ups systems for fibre laser metal cutting machines. Powertek ups is compatible to all the indian and imported metal cutting machines. The 40kva ups is used to run 1.5kw metal laser cutting machine.
